Week14

Title of the activity: Engineering Day ( FYP presentation )

Objective:

• Present the Final Year Project
• Give keep it up the confident on this day
• Present clearly about the project to assessor or student
• Get highest mark during this time

Content/Procedure:

• Setup the project, poster and laptop in Gemilang hall before 2 pm
• At 2.30 pm, waiting assessor for presentation
• Present clearly to assessor or all guests

Analysis:

In Engineering Day, all students FYP give more confident for show operation for FYP project and introduce about project detail to guest and assessor.

Conclusion:

Introduce to assessor about the whole operations of this project and showing to assessor the project running with interface between input circuit and output circuit, the output circuit act as a load.

Week13

Title of the activity: Preparation for FYP presentation

Objective:

• To ensure or improve the confident level for the presentation of the Final Year Project

Content/Procedure:

• Make sure project function.
• Study all technical and theoretical of project.

Analysis:

Based on this project, student should know what are learning during doing this project. It including the technical and theoretical of component used and the flowing of work around 2 semesters.Hence, student needs to explain all of question by judges.

Conclusion:

Finally, student should present all of work to judges. The objective to show what are student had learn around 1 year doing research of project.

Week 12

Title of the activity:  Design the poster for presentation day

Objective:

• To design a poster about the whole project description to make people clearly about the project

Content/Procedure:

• Explain the description of the project
• Clearly the main objective
• Design the block diagram
• Methodology about the project
• Make a result and analysis
• Conclusion about this project
• Poster design

Explain the description of the project

Ø  Intelligent ceiling fan controller based on temperature is the ceiling fan works with a speed control that automatically adjust the speed level due to the surrounding temperature without user have to select interested speed at the switch centrifugal. The speed fan is proportional to the temperature. As the temperature increase, the speed fan will be increased and vice versa

Clearly the main objective

Ø  To design an automatic controller circuits via combination of software (Proteus) and hardware

Ø  To understand the operation of speed control system for a ceiling fan application

Ø  To evaluate the functionality of the ceiling fan controller by considering the relationship of the speed change and room temperature

Design the block diagram

Methodology about the project

Ø  The system design is represented by a flow chart. The flow chart will explain on how the system works from the beginning to the end of the ‘intelligent fan’ process

Make a result and analysis

Conclusion about this project

Ø  Intelligent ceiling fan controller based on temperature is a user-friendly product. It senses the temperature and automatically adjusts the speed of the fan. The ceiling fan controller that built by using microcontroller chip PIC16F877A is really reliable and inexpensive to the end user

Poster design

Analysis:

From the poster it will describe everything about the project. The assessor can understand about the project from the poster. Methodology is explained how the whole of project function till end process. Block diagram can explain more clearly based on the block show. The block diagram shows the input and the output from the PIC. From the result it will display combination between software (proteus) with hardware part and the relationship between room temperature with speed of ceiling fan. The conclusion is concluding about the whole project.

Conclusion:

As a conclusion the poster is the most important thing to describe about the project. When the assessor and other reader read all the data and information on the poster it will give them satisfaction and just ask when they don’t know certain about the project.

Week 11

Title of the activity:  Compile/get the result

Objective:

• To obtain this project working based on expected
• To ensure the project is follow the main objective of this project or not

Content/Procedure:

• Understand the main objective
• Get the result based on objective

The main objective

• To design an automatic controller circuits via combination of software (Proteus) and hardware
• To understand the operation of speed control system for a ceiling fan application.
• To evaluate the functionality of the ceiling fan controller by considering the relationship of the speed change and room temperature.

Result based on objective

• Compare the result between in proteus with hardware part

Ø  Speed1



Ø  Speed2

Ø  Speed3

Ø  Speed4

Ø  Speed5

• Operation of speed control system for a ceiling fan application

Ø  Ceiling fan usually using single phase AC induction motor

o   Split-phase permanent capacitor

o   Capacitor start, capacitor run

o   Shaded pole motor

Ø  Motors have windings wound for 18, 20 or 22 poles, resulting in to lower operating speeds (Most common: 18 pole)

Ø  The rotor resistance is very high for wide speed control range using the stator voltage control

Ø  The operating speed range for the ceiling fans are

o   180 rpm to 380 rpm for countries like India

o   110 rpm to 220 rpm for Developed World

o   Low Speed is approx. half of high speed

Ø  Between low and high speeds three to five operating speed at equal interval is achieved using the variable speed control.

• Relationship of the speed change and room temperature

Ø  Based on theory, the speed fan is proportional to the changers of the temperature. So, to prove whether the theory true or not, the speed of ceiling fan of this project must taken when the temperature is change. The value of rpm of ceiling fan has taken using tachometer and represented in graph form.

Analysis:

For the analysis, comparison between software (proteus) and hardware part is tally with other, when the actual temperature in proteus display for speed1 18°C and select the relay1, same like at the hardware part is do the same task. Beside, relationship between room temperature with speed of ceiling fan is proportional, when the temperature increase, the speed fan also increases

Conclusion:

As a conclusion, the main objective of this project is achieved when proved by taken the result of this project, also the objective in this task is achieved.

Week 10

Title of the project:  Run the project

Objective:

• To ensure the circuit is working properly when combined with hardware part
• To study about wiring / connection output circuit with AC load and AC power supply

Content/Procedure:

• Check the connection overall circuit with AC load and AC power supply
• Turn On the switch and run the project

Connection overall circuit with AC load and AC power supply

• In this part, correctly wiring is important. Neutral wire for AC load and neutral wire for AC power supply is connect with output circuit

Run the project

Analysis:

For the analysis in this task, the important note is how connection the output circuits with AC load and AC power supply. If wrong connection the circuit probably the component burn and if the projector touch the circuit, it feel some electric shock so to avoid this thing, exact connection must be applied.

Conclusion:

As a conclusion, the project is working properly when the overall part is connected and full of the expected. So, this objective is achieved.

Week 9

Title of the activity:  Design hardware and mechanical part

Objective:

• To build hardware for this project
• To ensure the hardware and mechanical part suitable with circuit

Content/Procedure:

• Design the suitable part
• Used the suitable instrument to build this hardware
• Arrange the overall part

Design the suitable part

• Build the rectangular transparent box for location of circuit

• Build the stand for ceiling fan

Used the suitable instrument

Arrange the overall part

Analysis and Conclusion:

This hardware is suitable for this project and the portable hardware. It is design is look simple and more design can diversify. The design is look like that because to cut the cost and not waste the money.

Week 8

Title of the activity:  Test or troubleshoot the interfacing circuit between PIC circuit with Output circuit

Objective:

• To know the circuit function properly
• To troubleshoot when the circuit have a problem

Content/Procedure:

• Burn the program into PIC circuit
• Check the program related or not with PIC circuit
• Adjust the functionality of program or calibrate the reference voltage ( Vref ) to ensure the actual temperature is equal with function in PIC
• Interface the PIC circuit with output circuit
• Check again and ensure the overall circuit working as expected and is same with simulate in proteus

Burn the program into PIC

• For this project, at the PIC circuit I burn the program as directly and not use other out interface component because in software MPlab IDE have a PICkit2 software and just connected the wire from computer to PIC circuit but make sure at the PIC circuit have a pin IDC10 connector with PIC and it one of component from In Circuit Serial Programing ( ICSP )

Calibrate the reference voltage ( Vref )

Interface the PIC circuit with output circuit

Comparison real circuit function with simulate circuit function

Analysis:

For the analysis about this task, what can see at the above figure, student will burn the program into PIC circuit using normally method is using the interface software but for this project, it’s burn directly from computer to circuit. The important part is calibrate voltage reference ( Vref ) should have setting temperature is same with actual temperature and get the desired output as example; when setting temperature for speed 1 is 17°C to 21°C but if not calibrate Vref based on set point is not get the exact result for actual temperature probably swap with setting temperature.

Conclusion:

Circuit is working properly and knows how to burn the program into PIC, troubleshoot circuit also interfacing PIC circuit with Output circuit have done. So, in this task the objective is achieved.

Week 7

Title of the activity: Construct and design overall circuit on the PCB board

Objective:

• To design the interfacing circuit between PIC circuit and Output circuit

Content/Procedure:

• Design circuit by using protel design system software
• Print the design on the transparent paper or stick paper
• Etching process
• Drill and solder all component on the circuit

Protel Design System software

Design circuit

• PIC circuit & Output circuit

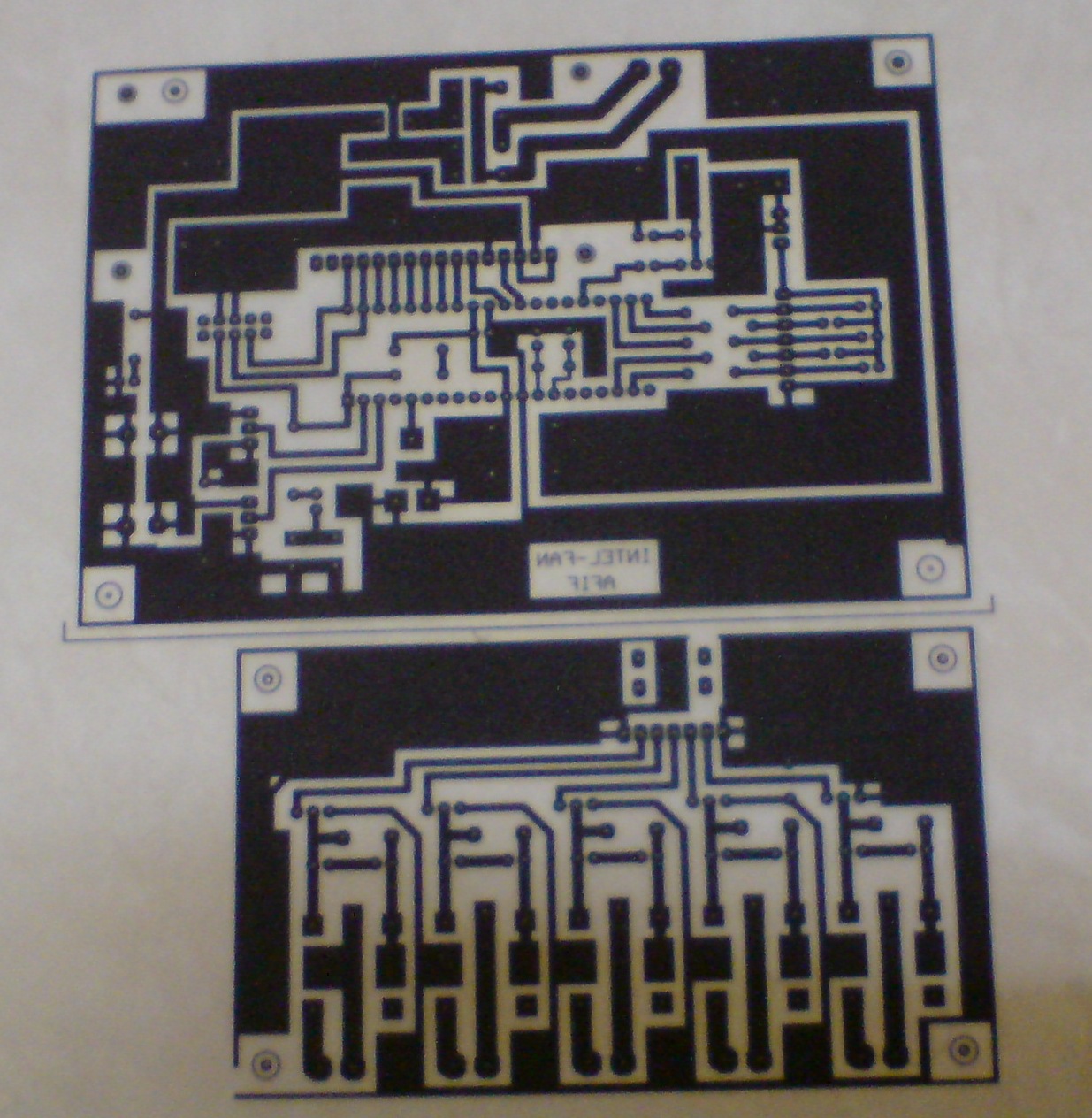

Print the design

• PIC circuit & Output circuit

Etching process

• Step 1 : Remove material from such as unwanted copper from the PCB surface to achieve circuit design requirements.

• Step 2 : Remove the black ink on the PCB board. The black ink has remove in order to solder the components

Drill and solder all components on the circuit

Analysis:

While doing this circuit, the most important thing that must be take note is the actual design of the component. If the design is too small, the component cannot be match with the circuit. From the picture above, we can see on the circuit a lot of jumper. It is because, the connection of the circuit while doing etching method is disconnected and to joint it back, we use jumper and testing again with multimeter.

Conclusion:

The circuit is show the interface between PIC circuits with output circuit. While the design, construct on PCB board, etching process and soldering all the components have done, the next process is to testing the circuit which is the circuit is function properly based on expected. So, this part has done and the objective is achieved.

Week 6

Title of the activity:  Run and simulate the programming of PIC in proteus

Objective:

• To ensure the circuit is working properly
• To know the language program is connectively with the circuit

Content/Procedure:

• Use MPlab IDE software to write a language program
• Check the language program
• Compile the language program for ensure the language have error or not
• Save the language program in save type assembly sources file
• Run the language program in proteus
• Check connection of the circuit

MPlab IDE software

Write the language program ( ASM language )

Compile the language program

• If have error, the software will display as below:

• If the language is success

Save the language

Run the program in proteus

Before run the program in proteus, selected properly file and processor clock frequency must check first. For the selected file, namefile.hex is used and processor clock frequency is selected depend on the PIC used.

• PIC circuit

Ø  When the LM 35DZ sensor has sense the environment temperature ( actual temperature ) at 17°C - 21°C, LED 1 is on. It is show the speed 1 of fan is run.

o   PIC circuit

o   Output circuit

Ø  The running program is same with others speed ( speed 2 till speed 5 ) of fan

Analysis:

In this part, before run the program in proteus and it is call as simulate. Writing language in MPlab must do first, when compile done and if have error it means the something wrong at the language but sometime the compile has success and when run in proteus, nothing display. Probably, the connection of input and output port PIC not related with language program, so checking and try again must repeated.

Conclusion:

For this project, the circuit is run full of expected and working properly. So, the next task will proceed and in this activity, the objective is achieved.

Week 5

Title of the activity: Study programming of PIC

Objective:

• To make the PIC operate
• To study about language program ( ASM language )

Content/Procedure:

• Study and define pin of PIC
• Study the ASM language
• Discuss with programmer

Pin i/o of PIC

Define port :

• Port A - sensor
• Port B - LCD display
• Port C / D – LED and connect to the output circuit

Program language:

                Assembly Language ( ASM )

Continue till end program……………………

Analysis:

Based on this part, before write the program also run of project, many factor must taken such as refer to block diagram, flow chart of this project and must define the input and output ( i/o ) port of PIC. So, for this project the port of PIC has defined. Port A for sensor, Port B for display, Port C and D for Led. Beside, for language to write this program, assembly language has selected.

Conclusion:

For this project, this is difficult part and must study hard because if write the wrong program or wrong command, the circuit not function properly. After study with programmer and do the research about the language, the objective has done.

Week 4

Title of the project:  Construct the circuit using electronic software

Objective:

• To select the which one of the electronic software
• To construct the circuit of project

Content/Procedure:

• State the electronic software will use to design the circuit
• Design the circuit in the software

Proteus software

PIC circuit

Output circuit

Analysis:

For this part, much electronic software that use by engineering student for simulate their circuit such as Pspice, Multism, Proteus and etc. So, for this project, the proteus software has selected because in this project have a program and the proteus software has relevant compare with other electronic software. Beside, the main component that used is PIC, so it is already install in this software. Student should build all connection at the input and output pin at PIC. Circuit will design based on the block diagram refer step function. For the example at PIC 16F877A, it have Port A,B,C and D where each port have their own operation function. Student must define each port to make their operation based on the block diagram or planning.

Conclusion:

Using proteus software will help student understand to connect and design the circuit based on PIC performance.  In this work, connection between components is important to make circuit will operation smoothly when applying the program assembly language (ASM language). If the connection have a problem, this software will show where the connection wrong.

Week 3

Title of the activity:  Design structure circuit

Objective:

• To know the design and construct of the circuit

Content/Procedure:

• Design the connection of the circuit
• Discuss with lecturer

PIC circuit

Output circuit

Analysis:

Before do the simulation on the electronic software, sketch the connection of the circuit on the paper must take first. The figure below show the design of PIC circuit and output circuit:

Conclusion:

Design the structure circuit is a main part before design the real circuit because to ensure the project work properly also know the direction of wiring between components and combination of both circuit. So, in this part, the objective is achieved.
